EQUIPMENT: BIRO GRINDERS

Carl G. Biro, Sr. was an American immigrant who founded the seedling company of BIRO Manufacturing in the early 1920's. Carl had a humble beginning as the son of a local blacksmith in his native country of Hungary. After settling in America, Carl became an apprentice who attended technical school at night and on the weekends

Eventually, Carl became the proprietor of his own meat market. During his proprietorship, he realized the need for a practical machine which would cut meat more effectively. Thus, in 1921, unable to ignore his ambitions of creating a practical meat cutter, Carl decided to dispose of his meat market so that he could devote more time to his concept. He leased an old church and used the equipment which was available and affordable at the time to pursue his "American Dream" and produce the first BIRO Power Meat, Fish and Bone Cutter.

In time, Carl's machine gained national as well as international recognition and acceptance. Biro's leadership in the meat cutting industry was unmistakably established. In order to keep up with the growing product demand, BIRO Manufacturing moved from the leased church building to a small but modern factory building. This establishment has grown to be the facility which now houses our corporate headquarters

Today, The BIRO Manufacturing Company markets over 35 items, including meat saws, tenderizers, meat grinders, chicken cutters, vacuum tumblers, horizontal slicers, and other meat processing machinery. This equipment is used in the United States and throughout the world. The company has certainly grown tremendously from the tiny seedling factory conceptualized by Carl Biro during the early 20's!

Those involved in The BIRO Manufacturing Corporation today strive for progress towards a still more advanced product and to gain a greater measure of goodwill and respect from those who deal with it. We here at BIRO face the future with the firm belief that . .."The best is yet to come."







Grinders

MODEL AFMG-24 MIXER GRINDER

The Biro AFMG-24 Mixer Grinder is an ideal mixer grinder for today’s compact supermarket meatroom. Its 5hp/3.7 kW (7.5 hp/5.6 kW optional) auger motor, 145 lbs. (66 kg) hopper, and size 32 head can give you an output of up to 65 lbs. (29 kg) per minute for the productivity you need. For even more productivity, your AFMG-24 can come with an optional meat lug holder (see reverse) and an optional electric or pneumatic footswitch. The heavy duty stainless steel hopper, frame, and legs can stand up to years of daily washdown and still resist corrosion, so your mixer grinder lasts longer, and you get a better return on your investment. Of course, it’s built with the superior engineering you expect from BIRO.

SPECIFICATIONS
AFMG-24 Mixer Grinder, size 32 knife plate.

CONSTRUCTION
Heavy duty stainless steel hopper, lid, paddle, frame and legs, hot tin dipped cast iron bowl, ring, and auger, size 32.

MOTORS

HP KW TYPE VOLTS AMPS HZ PH CODE
5 3.7 TE 208-230/460 14-13.4/6.7 60 3 STD
5 3.7 TE 230

22

 60 1 EC
5 3.7 TE 220/380-415 14.8/8.6-8.6 50 3 EC
7.5 5.6 TE 200 25 50 3 EC
7.5 5.6 TE 200 23 60 3 EC
7.5 5.6 TE 208-230/460 22-20.2/10.1 60 3 EC
7.5 5.6 TE 220/380-440 22/12.7/11 50 3 EC

STD=STANDARD EC=EXTRA COST NC=NO CHARGE NA=NOT AVAILABLE

SWITCH
Watertight magnetic with thermal overload and under voltage protection.

POWER CORD
8’ 10-4 cord with plug, 7-1/2hp, 208/220-60-3.
8’ 10-4 cord no plug, 5 or 7-1/2hp U.S./int’l operation.

HOPPER CAPACITY
Up to 145 lbs. (66 kg).

GRINDING CAPACITY
Up to 65 lbs. (29 kg) per minute depending on product temperature, texture, feed speed, and sharpness of knife plate.

DRIVE SYSTEM
Tandem gear reducers with mechanical clutch for engaging/disengaging auger.

SAFETY
Magnetic safety interlock on lid.

STANDARD FEATURES
No inlet hopper (solid tub) • stainless steel 2nd grind paddle with hook, spurt guard • ring wrench • receptacle for pneumatic footswitch • operating and safety manual.

OPTIONS (EC)
Pneumatic or electric footswitch • size 32 plate and knife • stainless steel bowl, ring, and auger (enterprise) • adjustable legs and casters with preventz additive • 7-1/2hp motor, meat lug holder • right or left feed inlet with connections for tandem systems • adjustable legs with stainless steel casters.

KNIFE / PLATE
Required, extra cost, various plate hole sizes available to fit your specific application (see above). Call agency or factory.

OPTIONAL (EC) SIZE 32 KNIFE AND PLATE
Plate hole sizes available, other hole sizes not listed available upon request.

MC32-17 Knife, 4 Blade
MC32-18-093 Plate, 3/32” Holes (2.5mm)
MC32-18-125 Plate, 1/8” Holes (3.0mm)
MC32-18-156 Plate, 5/32” Holes (4.0mm)
MC32-18-187 Plate, 3/16” Holes (4.7mm)
MC32-18-375 Plate 3/8” Holes (9.0mm)

Recommend 3/8” first grind, 1/8” second grind.

CERTIFICATION
7-1/2hp, 3 phase: U.L., N.S.F., U.S.D.A., C.S.A. 5hp, 1 or 3 phase: N.S.F., C.S.A.; 5hp, 1 phase: N.S.F.

CERTIFICATION
Uncrated: 608 lbs. (276 kg) approximate. Crated: 669 lbs. (303.5 kg) approximate. Wood Crate: 775 lbs. (329 kg) approximate.
DIMENSIONS CRATED L = 47” (119.4 cm), W = 35” (88.9 cm), H = 55” (139.7 cm).

Item Number: LIT-AFMG-24-217

MODEL AFMG-48 MIXER GRINDER

The BIRO Model AFMG-48 is a workhorse mixer grinder for the medium volume meat operation. Its 7.5  hp (5.6 kw) auger motor and size 32 head can give an output of over 65 pounds (30 kg) per minute for  the productivity you need. Separate auger and mixer motors mean there is no clutch to wear out or break, which means much lower maintenance costs and higher profits. The single reduction heavy duty roller chain auger drive with tapered roller bearings is the most efficient drive system, so you get maximum  power to the auger. The heavy duty stainless steel 200 pound (91 kg) hopper, frame, and legs can stand  up to years of daily washdown and still resist corrosion, so your mixer grinder lasts longer and you get a better return on your investment. Power, durability, and low maintenance.

SPECIFICATIONS
MODEL
AFMG-48 MIXER GRINDER.


CONSTRUCTION
HEAVY DUTY STAINLESS STEEL HOPPER, LID, PADDLE, FRAME AND LEGS. CAST IRON HOT TIN DIPPED BOWL, RING AND AUGER, SIZE 32.

MOTORS

MOTOR HP KW TYPE VOLTS AMPS CYCLE PH STATUS
AUGER 7.5 5.5 TEFC 208-230/460 24-21/11 60 3 STD
MIXER 1.75 1.3 TEFC 208-230/460

5.7-5.5/2.6

 60 3 STD
AUGER 10 7.5 TEFC 208-230/460 31-27/14 60 3 EC
AUGER 7.5 5.5 TEFC 575 8.8 60 3 EC
MIXER 1.75 1.3 TEFC 575 2.4 60 3 EC
AUGER 10 7.5 TEFC 575 11 60 3 EC
AUGER 7.5 5.5 TEFC 220/380-415 22/12.7-12.4 50 3 STD
MIXER 1.75 1.3 TEFC 220/380-415 5.9/3.4-3.1 50 3 STD
AUGER 10 7.5 TEFC 220/380-415 28/16.2-14 50 3 EC

TEFC= TOTALLY ENCLOSED FAN COOLED STD=STANDARD EC=EXTRA COST NC=NO CHARGE

SWITCH
WATERTIGHT MAGNETIC WITH THERMAL OVERLOAD AND UNDER VOLTAGE PROTECTION.

POWER CORD
12’ 10-4 CORD WITH PLUG 7-1/2 HP, U.S.,
12’ 10-4 CORD NO PLUG 7-1/2 HP, 50 HZ AND 575 VOLT.
12’ 8-4 CORD WITH PLUG 10 HP U.S.,
12’ 8-4 CORD NO PLUG 10 HP, 50 HZ AND 575 VOLT.

HOPPER CAPACITY
HOPPER 200 LBS. (91 KG).

GRINDING CAPACITY
OUTPUT – UP TO 65 LBS. (30 KG) PER MINUTE.

DRIVE SYSTEM
AUGER: SINGLE REDUCTION (35 PITCH – 4 ROW)
ROLLER CHAIN DRIVE WITH TAPERED ROLLER BEARINGS.
MIXER: HEAVY DUTY COMBINATION GEAR MOTOR.

SAFETY
MAGNETIC SAFETY INTERLOCK ON HOPPER LID.

STANDARD FEATURES
NO INLET (SOLID TUB) HOPPER, STAINLESS STEEL 2ND GRIND PADDLE WITH CENTER ARMS, CASTERS, SPURT GUARD, EXTRA ROD FOR FRONT, LEFT OR RIGHT SIDE OPENING LID, POWER CORD (SEE ABOVE), RING WRENCH, BOWL NUT WRENCH, TWO SHEAR PINS WITH SCREWS, RECEPTACLE FOR ELECTRIC FOOTSWITCH, OPERATING AND SAFETY MANUAL.

OPTIONS (EC)
ELECTRICAL OR PNEUMATIC FOOTSWITCH, SIZE 32 KNIVES AND PLATES, ACCESSORY CLEANING AND STORAGE RACK, EXTRA LONG STAINLESS STEEL LEGS (33”/838 MM TO 44”/1069 MM) FROM FLOOR TO BOWL CENTER, LEFT HAND 35 DEGREE SIDE  INLET, LEFT OR RIGHT 90 DEGREE STRAIGHT SIDE INLET, CONNECTIONS FOR  TANDEM OPERATIONS, 10 HP (7.5 KW) AUGER MOTOR, STAINLESS STEEL BOWL, RING  AND AUGER (ENTERPRISE OR UNGER).

OPTIONS (NC)
TUB WITH 35 DEGREE RIGHT HAND INLET (CALL FACTORY).

CERTIFICATION
U.S.D.A., U.L., N.S.F., C.S.A. ON 7-1/2 208/230/460-60-3

CERTIFICATION
UNCRATED: 720 LBS. (327 KG) APPROXIMATE.
CRATED: 830 LBS. (377 KG) APPROXIMATE.

DIMENSIONS CRATED
L = 52” (130 CM), W = 35” (89 CM), H = 64” (163 CM).

Item Number: LIT-AFMG48-123

MODEL AFMG-52 MIXER GRINDER

The BIRO Model AFMG-52 is the ideal workhorse mixer grinder for large supermarket meat rooms and  medium sized processors and HRI plants. Its 7.5 hp (5.6 kW) motor (or optional 10 hp, 7.5 kW motor)  provide an output of up to 100 lbs. (45.5 kg) per minute to give you the productivity you need. The  separate auger and mixer motors means there is no clutch to wear out or break, which means much lower maintenance costs and higher profits. The heavy duty roller chain auger drive with tapered roller  bearings is separate from the mixer drive, to give maximum power to the auger and more efficiency. The heavy duty stainless steel 200 lb. (90.9 kg) hopper and frame resist corrosion and damage, even in an environment of harsh cleaners. Your mixer grinder lasts longer and gives you more return on your  investment. Power, durability, and low maintenance help the BIRO Model AFMG-52 Mixer Grinder work harder so you don’t have to.

SPECIFICATIONS
MODEL
AFMG-52 MIXER GRINDER.

CONSTRUCTION
HEAVY DUTY STAINLESS STEEL HOPPER, LID, PADDLE, FRAME AND LEGS. CAST IRON HOT TIN DIPPED BOWL, RING AND AUGER, SIZE 52.

MOTORS

MOTOR HP KW TYPE VOLTS AMPS CYCLE PH STATUS
AUGER 7.5 5.5 TEFC 208-
230/460		 24-21/11 60 3 STD
MIXER 1.75 1.3 TEFC 208-
230/460

5.7-5.5/2.6

 60 3 STD
AUGER 10 7.5 TEFC 208-
230/460		 31-27/14 60 3 EC
AUGER 7.5 5.5 TEFC 575 8.8 60 3 EC
MIXER 1.75 1.3 TEFC 575 2.4 60 3 EC
AUGER 10 7.5 TEFC 575 11 60 3 EC
AUGER 7.5 5.5 TEFC 220/380-
415		 22/12.7-12.4 50 3 STD
MIXER 1.75 1.3 TEFC 220/380-
415		 5.9/3.4-3.1 50 3 STD
AUGER 10 7.5 TEFC 220/380-
415		 28/16.2-14 50 3 EC

TEFC= TOTALLY ENCLOSED FAN COOLED STD=STANDARD EC=EXTRA COST

SWITCH
WATERTIGHT MAGNETIC WITH THERMAL OVERLOAD AND UNDER VOLTAGE PROTECTION.

POWER CORD
12’ 10-4 CORD WITH PLUG 7-1/2 HP, U.S., 12’ 10-4 CORD NO PLUG 7-1/2 HP INTERNATIONAL, 12’ 8-4 CORD WITH PLUG 10 HP U.S., 12’ 8-4 CORD NO PLUG 10 HP INTERNATIONAL.

HOPPER CAPACITY
HOPPER: 200 LBS (91 KG). A 400 LB. (182 KG) IS ALSO AVAILABLE.

GRINDING CAPACITY
OUTPUT – UP TO 100 LBS (45.5 KG) PER MINUTE.

DRIVE SYSTEM
AUGER: SINGLE REDUCTION (35 PITCH – 4 ROW)

ROLLER
CHAIN DRIVE WITH TAPERED ROLLER BEARINGS.
MIXER: HEAVY DUTY COMBINATION GEAR MOTOR.

SAFETY
MAGNETIC SAFETY INTERLOCK ON HOPPER LID.

STANDARD FEATURES
TUB WITH NO SIDE INLET, STAINLESS STEEL 2ND GRIND PADDLE WITH CENTER ARMS, CASTERS, SPURT GUARD, EXTRA ROD FOR FRONT, LEFT OR RIGHT SIDE OPENING LID, POWER CORD (SEE ABOVE), RING WRENCH, BOWL NUT WRENCH, TWO SHEAR PINS WITH SCREWS, RECEPTACLE FOR ELECTRIC FOOTSWITCH, OPERATING AND SAFETY MANUAL.

OPTIONS (EC)
ELECTRICAL OR PNEUMATIC FOOTSWITCH, SIZE 52 PLATE AND KNIFE, ACCESSORY CLEANING AND STORAGE RACK, EXTRA LONG STAINLESS STEEL LEGS (33”/838 MM TO 42”/1069 MM) FROM FLOOR TO BOWL CENTER, LEFT HAND 35 DEGREE SIDE INLET, LEFT OR RIGHT 90 DEGREE STRAIGHT SIDE INLET, CONNECTIONS FOR TANDEM OPERATIONS, 10 HP (7.5 KW) AUGER MOTOR, STAINLESS STEEL BOWL,
RING AND AUGER (ENTERPRISE OR UNGER).
OPTIONS (NC)
35 DEGREE RIGHT HAND INLET (CALL FACTORY).

CERTIFICATION
U.S.D.A., U.L., N.S.F., C.S.A., C.F.I.A.

WEIGHT
UNCRATED: 745 LBS. (338 KG) APPROXIMATE.
CRATED: 855 LBS. (387 KG) APPROXIMATE.

DIMENSIONS CRATED
L=53” (134.6 CM), W=38” (96.5 CM), H=66” (167.6 CM).

Item Number: LIT AFMG-52-231

MODEL EMG-32 ERGONOMIC MIXER GRINDER

Shown with standard pneumatic footswitch lug cart not shown.

Raise your meat grinding operations to new heights of productivity, efficiency, and profit with the BIRO EMG-32 Ergonomic Mixer Grinder. The top of the hopper is lowered so that the average operator no longer has to lift a full meat lug above their shoulders to dump it in the hopper, and the grinding head is  raised to a height where you don’t have to bend over to fill trays prior to packaging. Just as important,  you get all of this without sacrificing the quality of your grind. The auger is parallel to the floor, so the  product isn’t compressed too much from being forced uphill, and the typical temperature rise of the  product is 0 to less than 4° F (depending on product temperature). This helps ensure maximum shelf life.  The twin mixing paddles give you a fast, even, thorough blend without overworking your product;  the auger is fed evenly and smoothly. The EMG-32′s compact size means it fits nicely in today’s smaller,  more efficient meat rooms, so that you can continue to maintain a high level of productivity in minimum  space. Of course, all of this comes with the superior BIRO design and reliability you’ve come to depend  on.

SPECIFICATIONS
MODEL
EMG-32 ERGONOMIC FEED MIXER GRINDER.

CONSTRUCTION
HEAVY DUTY STAINLESS STEEL HOPPER, LID, PADDLE, FRAME AND AUGER. CAST IRON HOT TIN DIPPED BOWL AND RING, SIZE 32.

MOTORS

MOTOR HP KW VOLTS AMPS CYCLE PH STATUS
AUGER 7.5 5.5 208-230/460 24-22/11 60 3 STD
MIXER 3/4 .56 208-230/460

2.7-2.8/1.2

 60 3 STD
AUGER 7.5 5.6 575 8.8 60 3 EC
MIXER 3/4 .56 575 1.1 60 3 EC
AUGER 7.5 5.5 220/380-415 22/12.7-11.6 50 3 STD
MIXER 3/4 .56 220/380-415 5.9/3.3-3.1 50 3 STD

STD=STANDARD EC=EXTRA COST

SWITCH
WATERTIGHT MAGNETIC WITH THERMAL OVERLOAD AND UNDER VOLTAGE PROTECTION, 24 VOLT CONTROL CIRCUIT.

POWER CORD
11’ NO. 10 – 4 WIRE CORD WITH PLUG 208-220/440-60-3; NO PLUG 220/380-415-50-3 NO PLUG 575-60-3.

CAPACITY
HOPPER: UP TO 150 LBS. (68 KG).

GRINDING CAPACITY
UP TO 80 LBS. (36.3 KG) PER MINUTE, FIRST GRIND 1/8” HOLE PLATE.
UP TO 56 LBS. (25.4 KG) PER MINUTE, SECOND GRIND 1/8” HOLE PLATE.

DRIVE SYSTEM
SINGLE REDUCTION ROLLER CHAIN.

SAFETY
SAFETY INTERLOCK ON HOPPER LID.

STANDARD FEATURES
STAINLESS STEEL AUGER (BOWL AND RING ARE PLATED), NO INLET (SOLID TUB) HOPPER, SPURT GUARD, RING WRENCH, PNEUMATIC FOOTSWITCH, 11’ CORD AND PLUG (U.S.), REVERSIBLE PADDLES, MEAT CART LESS LUGS, LOCKING SWIVEL CASTERS WITH PREVENTZ ANTIMICROBIAL ADDITIVE, BOWL NUT WRENCH, OPERATING AND SAFETY MANUAL.

OPTIONS (EC)
ELECTRIC FOOTSWITCH, SIZE 32 PLATE AND KNIFE, 35° RIGHT AND LEFT SIDE HOPPER INLET WITH CONNECTIONS FOR TANDEM OPERATIONS, STAINLESS STEEL BOWL AND RING (ENTERPRISE OR UNGER).


CERTIFICATION
U.L., N.S.F., U.L.-C.

WEIGHT
UNCRATED: 755 LBS. (342 KG) APPROXIMATE.
CRATED: 920 LBS. (417 KG) APPROXIMATE.

DIMENSIONS CRATED
L = 61” (154.9 CM), W = 37” (94 CM), H = 62” (157.5 CM)

Item Number: LIT-EMG-32-296

MODEL MINI-32 MINI MIXER GRINDER

The BIRO MINI-32 Mini Mixer Grinder with Flared Hopper makes it easier than ever to break away from the daily grind. Its 65 lb. capacity accepts full lugs that let you grind only the amounts you need to keep the case full and still keep your grinds as fresh as possible. You can use the same grinder for all of your ground products without having to worry about cross contamination because the MINI-32 is so easy to clean. It’s easy to disassemble, and all of the pieces are light so you can just carry all of them to the sink, wash them up, and go on to the next batch. The MINI-32 is ergonomic so the operator doesn’t have to lift a lug over their head or bend over to fill a tray. Ease of loading is a benefit with the newly designed flared hopper. The 3HP drive motor gives you the power you need to grind fresh ground meat, sausage, or poultry all day. So break away from the daily grind and keep your ground meat as fresh as possible with the BIRO Model MINI-32.

SPECIFICATIONS
MODEL
MINI-32 Mixer Grinder (mini automatic feed).

CONSTRUCTION
Stainless steel frame and tub, stainless lid, cast iron hot tin dipped bowl, ring and auger, size 32.

MOTORS

HP KW TYPE VOLTS AMPS CYCLE PH STATUS
3 2.2 DP 208-230/460 11-9.6/4.8 60 3 STD
3 2.2 DP 200

12

 60 3 EC
3 2.2 DP 208-230 19-17 60 1 EC
3 2.2 DP 230 17 50 1 EC
2-1/2 1.9 DP 380/415 4.4/3.6 50 3 EC

DP=Drip Proof   STD=Standard   EC=Extra Cost   NC=No Charge   NA=Not Available

SWITCH
3 phase, watertight magnetic with thermal overload and under voltage protection. 1 phase, variable frequency drive (VFD).

POWER CORD
10’ 12-4 cord with 4 prong twist lock 250 volt 20A plug, 60 Hz, 3 Ph.
10’ 12-3 cord, 50/60 Hz, 1 Ph, no plug.

HOPPER CAPACITY
Up to 65 lbs. (30 kg).

GRINDING CAPACITY
Up to 60 lbs. (27 kg) per minute.

DRIVE SYSTEM
Double reduction gear box, timing-belt/chain.

SAFETY
Magnetic interlock on tub and lid.

STANDARD
No inlet (solid tub), removable for easier cleaning, spurt guard, ring wrench, operating and safety manual, grinder stand with locking swivel casters.

OPTIONS (EC)
Size 32 knives and plates, pneumatic or electric footswitch, stainless steel casters.

CERTIFICATION
U.L., N.S.F., on 3 phase only.

WEIGHT
Uncrated 445 lbs. (201.2 kg) with grinder
stand approximate.
Crated 536 lbs. (243.1 kg) with grinder stand approximate.
Export crated 580 lbs. (263.1 kg) with grinder
stand approximate.

DIMENSIONS CRATED
L = 48” (122 cm), W = 31” (78.7 cm), H = 60” (152.4 cm).

Item Number: LIT-MINI-32-298

MODEL AFMG-52-4 AUTO FEED MIXER GRINDER

The BIRO Model AFMG-52-4 is the ideal workhorse mixer grinder for larger supermarket meat room processors and HRI plants. Its 10 hp (7.5 kw motor) provides an output of up to 100 lbs. (45.5 kg) per minute. The separate auger and mixer motors means there is no clutch to wear out or break, which means much lower maintenance costs and higher profits. The heavy duty roller chain auger drive with tapered roller bearings is separate from the mixer drive, to give maximum power to the auger and more efficiency. The heavy duty stainless steel 400 lb. (182 kg) hopper and frame resist corrosion and damage, even in an environment of harsh cleaners. Your mixer grinder lasts longer and gives you more return on your investment. Power, durability, and low maintenance.

SPECIFICATIONS
MODEL
AFMG-52-4 AUTO FEED MIXER GRINDER.

CONSTRUCTION
HEAVY DUTY STAINLESS STEEL HOPPER, LID, PADDLE, FRAME AND LEGS. CAST IRON HOT TIN DIPPED BOWL, RING AND AUGER, SIZE 52.

MOTORS

MOTOR HP KW TYPE VOLTS AMPS CYCLE PH STATUS
AUGER 10 7.5 TEFC 208-230/460 31-27/14 60 3 STD
MIXER 5 3.7 TEFC 208-230/460

13.4-12/6.3

 60 3 STD
AUGER 10 7.5 TEFC 575 11 60 3 EC
MIXER 5 3.7 TEFC 575 5.5 60 3 EC
AUGER 10 7.5 TEFC 220/380-415 28/16.2-14 50 3 STD
MIXER 5 3.7 TEFC 220/380-415 19.2/11-10 50 3 STD

TEFC= TOTALLY ENCLOSED FAN COOLED STD=STANDARD EC=EXTRA COST NC=NO CHARGE

SWITCH
WATERTIGHT MAGNETIC WITH THERMAL OVERLOAD AND UNDER VOLTAGE PROTECTION.

POWER CORD
12’ 6-4 CORD WITH 50A PLUG, U.S.; 12’ 6-4 CORD, NO PLUG INTERNATIONAL.

HOPPER CAPACITY
HOPPER: 400 LBS (182 KG). A 200 LB. (91 KG) IS ALSO AVAILABLE.

GRINDING CAPACITY
OUTPUT – UP TO 100 LBS. (45.5 KG) PER MINUTE.

DRIVE SYSTEM
AUGER: SINGLE REDUCTION (35 PITCH – 4 ROW) ROLLER CHAIN DRIVE WITH TAPERED ROLLER BEARINGS.
MIXER: DOUBLE REDUCTION GEAR BOX AND OPEN FACE GEAR DRIVE.

SAFETY
MAGNETIC SAFETY INTERLOCK ON HOPPER LID.

STANDARD FEATURES
35 DEGREE RIGHT HAND INLET, STAINLESS STEEL GRIND PADDLE WITH CENTER ARMS, CASTERS, SPURT GUARD, FRONT TO BACK OPENING LID, LID HAS GAS PISTON FOR SLOW-CLOSING OPERATION, POWER CORD (SEE ABOVE), RING WRENCH, BOWL NUT WRENCH, 2 AUGER SHEAR PINS WITH SCREWS, RECEPTACLE FOR ELECTRIC OR PNEUMATIC FOOTSWITCH, OPERATING AND SAFETY MANUAL.

OPTIONS (EC)
ELECTRICAL OR PNEUMATIC FOOTSWITCH, SIZE 52 PLATE AND KNIFE, LEFT HAND 35 DEGREE SIDE INLET, LEFT OR RIGHT 90 DEGREE STRAIGHT SIDE INLET, HOPPER WITH NO INLET, CONNECTIONS FOR TANDEM OPERATIONS, CONTINUOUS FEED LID, STAINLESS STEEL BOWL, RING AND AUGER (ENTERPRISE OR UNGER).

OPTIONS (NC)
N/A

CERTIFICATION
U.L., N.S.F. UL-C

WEIGHT
UNCRATED: 1300 LBS. (590 KG) APPROXIMATE.
CRATED: 1440 LBS. (653 KG) APPROXIMATE.

DIMENSIONS CRATED
L = 60” (152.4 CM), W = 44” (111.8 CM), H = 70” (177.8 CM)

Item Number: LIT-AFMG52-4-334

MODEL AFMG-56 MK III MIXER GRINDER

With the BIRO Model AFMG-56 Mk III Mixer Grinder you can start increasing the output of your  grinding operation without having to spend a fortune.
The 800 lb. (362.9 kg) hopper gives you the kind  of capacity you need, and the 20 hp (15 kW) auger motor gives you the power you need. The 5 hp (3.7 kW) mixer motor is strong enough that it won’t bog down with a full hopper, and the twin mixing  paddles give you a quick, thorough mix. Safety interlocks and a pneumatic lift for the lid help ensure  safety, and the machine has watertight controls and TEFC motors so you can do a full washdown  cleanup. The hopper and frame are constructed of heavy duty stainless steel so it resists damage and  corrosion. As with all BIRO designed and built machines, you get the benefit of over 90 years of  engineering experience in building meat processing equipment.

SPECIFICATIONS
MODEL
AFMG-56MKIII AUTO-FEED MIXER GRINDER.

CONSTRUCTION
HEAVY DUTY STAINLESS STEEL HOPPER, LID, PADDLES, FRAME AND LEGS, STAINLESS STEEL SIZE 56 BOWL, RING, AND AUGER.

MOTORS

MOTOR HP KW TYPE VOLTS AMPS CYCLE PH STATUS
AUGER 20 14.9 TEFC 208-
230/460		 53-48/24 60 3 STD
MIXER 5 3.7 TEFC 208-
230/460

14-13/6.6

 60 3 STD
AUGER 20 14.9 TEFC 200 55 60 3 EC
MIXER 5 3.7 TEFC 200 15.9 60 3 EC
AUGER 20 14.9 TEFC 575 26 60 3 EC
MIXER 5 3.7 TEFC 575 5.2 60 3 EC
AUGER 20 14.9 TEFC 220/380-
415		 56/27-29.3 50 3 EC
MIXER 5 3.7 TEFC 220/380-
415		 14/8.1-7.4 50 3 EC

TEFC= TOTALLY ENCLOSED FAN COOLED STD=STANDARD EC=EXTRA COST

SWITCH
WATERTIGHT MAGNETIC CONTROLLER WITH THERMAL OVERLOAD AND UNDER VOLTAGE PROTECTION, SEPARATE MIX AND GRIND CONTROLS, MIX STAGE TIMER IS FACTORY PRESET FOR 2 MINUTES ON/5 MINUTES OFF.

POWER CORD
FOR 200-230 VOLT OPERATION, 9” (22.86 CM) NO. 4 WIRE, 4 STRAND POWER CORD – NO PLUG.
FOR 380-575 VOLT OPERATION, 9” (22.86 CM) NO. 6 WIRE, 4 STRAND POWER CORD – NO PLUG.

HOPPER CAPACITY
UP TO 800 LBS. (362.9 KG).

GRINDING CAPACITY
UP TO 250 LBS. (113.7 KG) OUTPUT PER MINUTE.

DRIVE SYSTEM
AUGER: 20HP (11.2 KW) T.E.F.C. MOTOR, SINGLE REDUCTION SILENT CHAIN. MIXER FEED PADDLES: 5 HP (3.7 KW) T.E.F.C.,HEAVY DUTY DOUBLE REDUCTION GEAR BOX AND HEAVY DUTY OPEN FACE GEAR DRIVE.

SAFETY
MAGNETIC SAFETY INTERLOCK ON LID.

STANDARD
NO INLET (SOLID TUB) HOPPER; STAINLESS STEEL BOWL, RING, AND AUGER; PNEUMATIC LID OPENER REGULATED TO 45 P.S.I., STAINLESS STEEL SPURT GUARD, RING WRENCH, OPERATING AND SAFETY MANUAL.

OPTIONS (EC)
HAND FEED INLET SIZE 56 INLET, FUNNEL AND CONNECTIONS FOR TANDEM SYSTEM, SINUE COLLECTION SYSTEM.

CERTIFICATION
C.F.I.A.

WEIGHT
UNCRATED: 1800 LBS. (818.2 KG) APPROXIMATE
WOOD CRATE: 2526 LBS. (1145.8 KG) APPROXIMATE

DIMENSIONS CRATED
L = 73” (185.4 CM), W = 65” (165.1 CM), H = 82” (208.3 CM)

Item Number: LIT AFMG-56 MK III-309

MODEL AFMG-56-4 AUTO FEED MIXER GRINDER

With the BIRO Model AFMG-56-4 Mixer Grinder you can start increasing the output of your grinding operation without having to spend a fortune to do it. The 400 lb. (182 kg) hopper gives you the kind of capacity you need, and the 15 hp (11.2 kw) auger motor gives you the power you need. The 5 hp (3.7 kw) mixer motor is heavy enough that it won’t bog down with a full hopper, and the twin mixing paddles give you a quick, thorough mix. The machine has watertight controls and TEFC motors so you can do a full washdown cleanup. The hopper, frame, paddles, bowl, ring, and auger are all constructed of heavy duty stainless steel so it resists damage and corrosion. As with all BIRO designed and built machines, you get the benefit of over 80 years of engineering experience in building meat processing equipment.

SPECIFICATIONS
MODEL
AFMG-56-4 AUTO FEED MIXER GRINDER.

CONSTRUCTION
HEAVY DUTY STAINLESS STEEL HOPPER, LID, PADDLES, FRAME, BOWL, RING AND AUGER, SIZE 56.

MOTORS

MOTOR HP KW TYPE VOLTS AMPS CYCLE PH STATUS
AUGER 15 11.2 TEFC 208-230/460 42-38/19 60 3 STD
MOTOR 5 3.7 TEFC 208-230/460

14-13.2/6.6

 60 3 STD
AUGER 15 11.2 TEFC 200 43.7 60 3 EC
MOTOR 5 3.7 TEFC 200 15.4 60 3 EC
AUGER 15 11.2 TEFC 575 15 60 3 EC
MOTOR 5 3.7 TEFC 575 5.2 60 3 EC
AUGER 15 11.2 TEFC 220/380-415 42/24-21.9 50 3 STD
MOTOR 5 3.7 TEFC 220/380-415 14/8.1-7.4 50 3 STD

TEFC= TOTALLY ENCLOSED FAN COOLED STD=STANDARD EC=EXTRA COST NC=NO CHARGE NA=NOT AVAILABLE

SWITCH
WATERTIGHT MAGNETIC WITH THERMAL OVERLOAD AND UNDER VOLTAGE PROTECTION, SEPARATE MIX AND GRIND CONTROLS.

POWER CORD
9’ 6-4 CORD.

HOPPER CAPACITY
UP TO 400 LBS. (182 KG).

GRINDING CAPACITY
UP TO 200 LBS. (91 KG) PER MINUTE.

DRIVE SYSTEM
AUGER: SINGLE REDUCTION EAGLE PD (POLY), SELF-CENTERING, NO STRETCH, NO LUBRICATING

DRIVE BELT
MIXER: DOUBLE REDUCTION GEAR BOX AND OPEN FACE GEAR DRIVE.

SAFETY
MAGNETIC SAFETY INTERLOCK ON LID.

STANDARD FEATURES
NO INLET (SOLID TUB) HOPPER, GAS CYLINDER TO ASSIST LID OPENING, SPURT GUARD, RING WRENCH, SS BOWL, RING AUGER, OPERATING AND SAFETY MANUAL.

OPTIONS (EC)
ELECTRICAL OR PNEUMATIC FOOTSWITCH, SIZE 56 KNIFE AND PLATE, CAST IRON HOT TIN-DIPPED BOWL, RING AND AUGER, ROD STYLE GRATED LID FOR CONTINUOUS FEED, LOCKING SWIVEL CASTERS, 90° STRAIGHT OR 35° ANGLE, RIGHT OR LEFT SIZE 56 INLET CONNECTIONS FOR TANDEM OPERATIONS.

OPTIONS (NC)
NA

CERTIFICATION
NA

WEIGHT
UNCRATED: 1760 LBS. (798 KG) APPROXIMATE.
WOOD CRATED: 2060 LBS. (934.4 LG) APPROXIMATE.

DIMENSIONS CRATED
L=67” (1701 MM), W=48” (1219 MM), H=76” (1930 MM)

MACHINE HEIGHT
57-5/16” (1456 MM) MIN.
67-5/16” (1710 MM) MAX.

MACHINE HEIGHT
(WITH LID UP)
90-7/8” (2308 MM) MIN. 99-7/8” (2537 MM) MAX.

BOWL HEIGHT
27-7/8” (708 MM) MIN.
36-7/8” (937 MM) MAX.

LENGTH
50” (1270 MM)

LENGTH (FROM END OF KNIFE DRIVE PIN)
59-5/16” (1507 MM)

WIDTH
35-7/8” (911 MM)

Item Number: LIT-AFMG-56-4-329

HHP (HEAVY HORSE POWER) MEAT GRINDERS

Shown: HHP Model 548SS and HHP Model 1056SS

The Biro HHP (Heavy Horse Power) Meat Grinders are a series of manual feed grinders with a range of bowl sizes and motor sizes that can be tailored to meet your grinding needs. With bowl sizes of 48, 52, or 56 and motor sizes of 5, 7.5, 10, or 15 hp (3.7, 5.6, 7.5, or 11.2 kw), we can provide a grinder that is just right for your application. All of the HHP series grinders feature single – reduction chain drive transmissions for maximum efficiency, and all the grinders use tapered roller bearings for low maintenance and long life. The HHP grinders have output capacities ranging from 1500 lbs. (680 kg) per hour to 7500 lbs. (3402 kg) so you can pick the model that fits best.

SPECIFICATIONS
MODEL
548SS, 552SS, 7548SS, 7552SS, 1056SS, 1556SS Grinders (Chopper/Mincer).

CONSTRUCTION
Stainless steel feed pan and polished stainless steel case, Cast iron hot tin dipped bowl, ring, and auger.

MOTORS

BOWL HP KW VOLTS AMPS CYCLE PH STATUS
48/52 5 3.7 208-220/440 17-16/8 60 3 STD
48/52 5 3.7 208-230

29-27

 60 1 EC
48/52 5 3.7 550-575 6.4-6 60 3 EC
48/52 5 3.7 220/380-415 19.2/11-10 50 3 NC
48/52 7.5 5.6 208-220/440 23-22/11 60 3 STD
48/52 7.5 5.6 550-575 8.8-8.4 60 3 EC
48/52 7.5 5.6 220 26.4 50 3 EC
48/52 7.5 5.6 380-415 15.3-14 50 3 NC
56 10 7.5 208-220/440 27-25.6/12.8 60 3 STD
56 10 7.5 550-575 10-9.6 60 3 EC
56 10 7.5 220/380-415 30.7/17.8-16.3 50 3 NC
56 15 11.2 208-220/440 41-39/19.5 60 3 STD
56 15 11.2 550-575 15.6-14.9 60 3 EC
56 15 11.2 220/380-415 46.8/27-24.8 50 3 NC

STD=STANDARD  EC=EXTRA COST  NC=NO CHARGE
48 BOWL ACCEPTS SIZE 32 PLATES AND KNIVES – EC
52 BOWL ACCEPTS SIZE 52 PLATES AND KNIVES – EC
56 BOWL ACCEPTS SIZE 56 PLATES AND KNIVES – EC

INCH DIMENSION (MM) 548, 7548 552, 7552 1056, 1556
A 29 (737) 29 (737) 29 (737)
B 52 (1321) 52 (1321) 52 (1321)
C 8-5/8 (219) 8-5/8 (219) 8-5/8 (219)
C’ 4-1/4 (108) 4-1/4 (108) 4-1/4 (108)
D 27-1/4 (692) 27-1/4 (692) 32-1/4 (819)
E 2-3/4 (70) 2-3/4 (70) 2-3/4 (70)
F 30-1/4 (768) 30-1/4 (768) 33-1/4 (845)
G 18-15/16 (481) 18-15/16 (481) 22-1/2 (571)
H 11 (279) 11 (279) 12-1/8 (308)
I 4-1/4 (108) 4-1/4 (108) 4-1/2 (114)
J 12-3/8 (314) 11-3/4 (298) 16-1/4 (413)
K 14-1/2 (368) 14-1/2 (368) 17-3/4 (451)
L 8-1/4 (210) 8-1/4 (210) 3-1/4 (83)
M 5 (127) 5 (127) 2-1/2 (63)
N 17-1/2 (444) 17-1/4 (438) 21 (533)
O 42-3/4 (1086) 42-3/4 (1086) 42-3/4 (1086)
P 2-1/2 (63) 2-1/2 (63) 3-1/2 (89)
OA 55 (1397) 55 (1397) 58-3/4 (1492)
WEIGHT PACKED 510 (232) 520 (236) 705 (320)
WEIGHT UNPACKED 430 (195) 440 (200) 621 (282)

FEED PANS ALL MODELS
For 5, 7.5, 10, and 15 HP units – Left-Hand stainless steel high back feed tray is standard.

CAPACITY FEED PAN
5 & 7.5 HP approximately 100 LBS. (45 KGS.)
10 & 15 HP approximately 115 LBS. (52 KGS.)

GRINDING CAPACITY (APPROXIMATE)
548 & 7548 – 55 LBS. (25 KG) per minute (1ST grind) & 33 LBS. (15 KG ) per minute (2ND grind). 552 & 7552 – 70 LBS. (32 KG) per minute (1ST grind) & 40 LBS.(18 KG) per minute (2ND grind). 1056 & 1556 – 125 LBS. (57 KG) per minute (1ST grind) & 80 LBS. (36 KG) per minute (2ND grind).

SWITCH
Watertight magnetic type with thermal overload and under voltage protection.

POWER CORD
Option at (EC). Specify length.

DRIVE SYSTEM

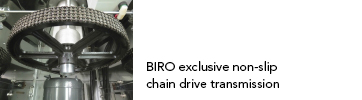

Silent (10-15 HP) or Roller link (5, 7.5 HP) chain drive over wide face sprockets insuring maximum power transfer from motor to auger.


BEARINGS
Deep tapered roller thrust bearings carry all radial and thrust loads from auger eliminating friction.

SAFETY
Magnetic safety interlock so machine will not operate when feed pan with welded bowl guard is removed.

STANDARD FEATURES
Aluminum legs (see schematic), spurt guard, stomper, ring wrench, bowl guard on feed pan, operating and safety manual.

OPTIONS (EC)
Size 32, 52, 56 knives and plates, longer legs aluminum or steel with cross bracing, various motors (see chart), solid stomper, connections for mixer-grinder system, Goodyear Eagle herringbone belt system, right-hand stainless steel high back feed trays available on request, power cord (specify length).

CERTIFICATION
U.L., N.S.F., U.S.D.A., C.S.A.

WEIGHTS APROXIMATED, LBS. (KG)

Item Number: LIT-HHP-065

MODEL 346SS MANUAL FEED GRINDER

The Biro 346SS is a compact stainless steel manual feed grinder that is well suited to today’s smaller meat rooms. Its 3 HP motor has plenty of power, and the size 32 head and square throat bowl ensure plenty of productivity. The 346’s compact size means it can fit into tight places, which makes it just right for today’s smaller grocery store meat rooms. The single reduction roller chain drive ensures maximum power, and the tapered roller bearings mean trouble-free operation. The bowl assembly and feed tray are easily removed without tools, so cleanup is a snap. Efficiency, durability, and low, low maintenance all help make the Biro 346SS Meat Grinder a reliable workhorse you can depend on.

SPECIFICATIONS
MODEL
346 Grinder (chopper, mincer).

CONSTRUCTION
Stainless steel feed pan and polished stainless steel case, cast iron hot tin-dipped bowl assembly, size 32.

MOTORS

HP KW TYPE VOLTS AMPS CYCLE PH STATUS
3 2.2 ODP 208-230/460 15-14/7 60 3 STD
3 2.2 ODP 208-220

18-17

 60 1 EC
3 2.2 ODP 200 11.5 60 3 EC
3 2.2 ODP 220/380 12.1/7 50 3 EC
3 2.2 ODP 220-230 19-18 50 1 EC

ODP=Open Drip Pan   STD=Standard   NC=No Charge
EC=Extra Charge   NA=Not Available

SWITCH
Watertight enclosure, magnetic, thermal overload type, automatic resetting, switch controlled by a rocker rod arrangement projecting outside both sides of machine activated by switch rod handle.

POWER CORD
Available option at extra cost.

CAPACITY FEED PAN
Approximately 85 lbs. (38.5 kg).

GRINDING CAPACITY
1st grind 3/8” (9.5mm) plate output is 45 lbs. (20kg) per minute. 2nd grind 1/8” (3.2mm) plate output is 29 lbs. (13kg) per minute. NOTE: Outputs are approx. depending on product temperature, fat-lean ratio, feed speed, texture, sharpness of knife and plate.

DRIVE SYSTEM
Pre-lubricated chain drive.


SAFETY
Magnetic safety interlock so machine will not operate when feed pan with welded bowl guard is removed.

STANDARD FEATURES
11” (280 mm) aluminum legs • spurt guard • stomper • ring wrench • welded bowl guard on feed pan • operating and safety manual.

OPTIONS (EC)
Size 32 knife and plate • longer legs • power cord • 220/380-50-3 • 220-50-1 • stainless steel bowl assembly (enterprise or unger) • solid stomper • right hand feed pan.

CERTIFICATION
U.S.D.A., N.S.F., U.L. – 3 phase.

WEIGHT
1 phase uncrated: 344 lbs. (156 kg) approximate.
1 phase crated: 420 lbs. (191 kg) approximate.
3 phase uncrated: 345 lbs. (157 kg) approximate.
3 phase crated: 435 lbs (198 kg) approximate.

DIMENSIONS CRATED
L = 30” (762 mm), W = 59” (1499 mm), H = 40” (1016 mm).

Item Number: LIT 346-204

MODEL 722 MANUAL FEED GRINDER

The BIRO 722 / 822SS / 922SS Series of Manual Feed Grinders is a group of reliable, durable, and inexpensive service grinders designed for restaurants, meat departments, and hunters. All of these grinders have a 1hp motor, which gives you all of the power and output you need in a grinder. All models are equipped with a single reduction HTD (high torque drive) belt driven system that provides maximum power without slippage for maximum productivity. The bowl assembly and feed tray on each of the models can be removed without tools, so they’re easy to clean, and their simple, rugged construction gives you a grinder that is virtually maintenance free. With a 22 head size and straight or flared throat, you can choose the grinder that’s right for you. Reliability, durability, and low maintenance – BIRO Service Grinders.

SPECIFICATIONS
MODEL
722 Manual Feed Grinder

CONSTRUCTION
Cast aluminum base

MOTORS

STAT HP (KW) VOLT CYCLE PHASE AMPS 6’ POWER CORD & PLUG 6’ POWER CORD NO PLUG
STD 1 (.75KW) TE 115/208-230 60 1 9/5.4-5 YES NO
OPT 1 (.75KW) TE 110/220 50 1

9/4.9

 NO YES

TE=TOTALLY ENCLOSED   OP=OPEN   EC=EXTRA COST   STD=STANDARD   OPT=OPTIONAL

FEED PAN
Removable stainless steel feed pans standard

FEED PAN CAPACITY
Holds approximately 20 LBS. (9.1 KG)

BOWL, CAST IRON
Tinned, straight sides

BEARINGS ON DRIVE SHAFT
Heavy duty thrust and radial – prelubricated

DRIVE SYSTEM
HTD (high-torque drive) steel wire power grip belt, 95% efficiency rated, non corrosive, no lubrication required

GRIND CAPACITY OUTPUT
All capacities are approximate through 1/8” hole plate and depend on product type, temperature, size, plate hole size, and feed rate

LBS/KGS PER MINUTE
10-16 lbs. (4.5-7.3 kgs)

STANDARD FEATURES
Stomper, operating and safety manual, cord and/or plug see motor spec above

OPERATING SPACE REQ’D
13” (330 mm) x 24” (610 mm) approx.


SIZE 22 KNIFE/PLATE
Required, extra cost. Various plate hole sizes available to fit your specific application.

CERTIFICATIONS
UL NSF

WEIGHTS: NET
93 lbs. (42.2 kg)
WEIGHTS: GROSS
133 lbs. (60.4 kg)

DIMENSIONS CRATED
L = 18” x W = 31” x H = 27”    457 mm x 787 mm x 686 mm

Item Number: LIT-22-22-22-218

MODEL 822SS MANUAL FEED GRINDER

The BIRO 722 / 822SS / 922SS Series of Manual Feed Grinders is a group of reliable, durable, and inexpensive service grinders designed for restaurants, meat departments, and hunters. All of these grinders have a 1hp motor, which gives you all of the power and output you need in a grinder. All models are equipped with a single reduction HTD (high torque drive) belt driven system that provides maximum power without slippage for maximum productivity. The bowl assembly and feed tray on each of the models can be removed without tools, so they’re easy to clean, and their simple, rugged construction gives you a grinder that is virtually maintenance free. With a 22 head size and straight or flared throat, you can choose the grinder that’s right for you. Reliability, durability, and low maintenance – BIRO Service Grinders.

SPECIFICATIONS
MODEL
822SS Manual Feed Grinder

CONSTRUCTION
Case: mirror finish stainless steel

MOTORS

STAT HP
(KW)		 VOLT CYCLE PHASE AMPS 6’ POWER CORD & PLUG 6’ POWER CORD NO PLUG
STD 1 (.75kw) OP 115/230 60 1 13.2/6.6 YES NO
OPT 1 (.75kw) OP 240 50 1

6.2

 NO YES
OPT 1 (.75kw) OP 220/380 50 3

3.8/2.2

 NO YES
OPT 1 (.75kw) OP 220/440 60 3

3.8/1.9

 NO YES

OP=OPEN EC=EXTRA COST STD=STANDARD OPT=OPTIONAL

FEED PAN
Removable stainless steel feed pans standard

FEED PAN CAPACITY
Holds approximately 20 LBS. (9.1 KG)

BOWL, CAST IRON
Tinned, straight sides

BEARINGS ON DRIVE SHAFT
Heavy duty thrust and radial – prelubricated

DRIVE SYSTEM
HTD (high-torque drive) steel wire power grip belt, 95% efficiency rated, non corrosive, no lubrication required

GRIND CAPACITY OUTPUT
All capacities are approximate through 1/8” hole plate and depend on product type, temperature, size, plate hole size, and feed rate



LBS/KGS PER MINUTE
10-16 lbs. (4.5-7.3 kgs)

STANDARD FEATURES
Stomper, operating and safety manual, cord and/or plug see motor spec above

OPERATING SPACE REQ’D
13” (330 mm) x 24” (610 mm) approx.

SIZE 22 KNIFE/PLATE
Required, extra cost. Various plate hole sizes available to fit your specific application.

CERTIFICATIONS
NSF USDA

WEIGHTS: NET
89 lbs. (40.3 kg)
WEIGHTS GROSS
121 lbs. (54.9 kg)

DIMENSIONS CRATED
L = 16” x W = 28 1⁄2” x H = 24”    406 mm x 724 mm x 610 mm

Item Number: LIT-22-22-22-218

MODEL 922SS MANUAL FEED GRINDER

The BIRO 722 / 822SS / 922SS Series of Manual Feed Grinders is a group of reliable, durable, and inexpensive service grinders designed for restaurants, meat departments, and hunters. All of these grinders have a 1hp motor, which gives you all of the power and output you need in a grinder. All models are equipped with a single reduction HTD (high torque drive) belt driven system that provides maximum power without slippage for maximum productivity. The bowl assembly and feed tray on each of the models can be removed without tools, so they’re easy to clean, and their simple, rugged construction gives you a grinder that is virtually maintenance free. With a 22 head size and straight or flared throat, you can choose the grinder that’s right for you. Reliability, durability, and low maintenance – BIRO Service Grinders.

SPECIFICATIONS
MODEL
922SS Manual Feed Grinder

CONSTRUCTION
Case: mirror finish stainless steel

MOTORS

STAT HP
(KW)		 VOLT CYCLE PHASE AMPS 6’ POWER CORD & PLUG 6’ POWER CORD NO PLUG
STD 1
(.75kw) OP		 115/
230		 60 1 13.2/6.6 YES/NO NO/YES
OPT 1 (.75kw) OP 240 50 1

6.2

 NO YES
OPT 1 (.75kw) OP 220
/380		 50 3

3.8/2.2

 NO YES
OPT 1 (.75kw) OP 220/
440		 60 3

3.8/1.9

 NO YES

OP=OPEN EC=EXTRA COST STD=STANDARD OPT=OPTIONAL

FEED PAN
Removable stainless steel feed pans standard, welded bowl guard on 922SS

FEED PAN CAPACITY
Holds approximately 25 LBS. (11.3 KG)

BOWL, CAST IRON
Tinned, flared sides

BEARINGS ON DRIVE SHAFT
Heavy duty thrust and radial – prelubricated

DRIVE SYSTEM
HTD (high-torque drive) steel wire power grip belt, 95% efficiency rated, non corrosive, no lubrication required

GRIND CAPACITY OUTPUT
All capacities are approximate through 1/8” hole plate and depend on product type, temperature, size, plate hole size, and feed rate

LBS/KGS PER MINUTE
12-20 lbs. (5.5-9 kgs)

STANDARD FEATURES
Stomper, operating and safety manual, cord and/or plug see motor spec above

OPERATING SPACE REQ’D
18” (455 mm) x 28” (710 mm)

SIZE 22 KNIFE/PLATE
Required, extra cost. Various plate hole sizes available to fit your specific application.

CERTIFICATIONS
UL NSF USDA

WEIGHT NET
93 lbs. (42.2 kg)
WEIGHT GROSS
148 lbs. (67.2 kg)

DIMENSIONS CRATED
L = 18” x W = 31” x H = 27”    457 mm x 787 mm x 686 mm

Item Number: LIT-22-22-22-218

MODEL 6642 MEAT GRINDER

The Biro 6642 Meat Grinder is a versatile manual feed grinder that can be used as either a compact floor grinder or a large countertop grinder. Its 2 HP motor has plenty of power, and the size 42 head and wide angle bowl ensure good productivity. The 6642’s compact size means it can fit into tight places, which makes it ideal for meat shops, small grocery store meat rooms, and commercial or institutional kitchens. The exclusive Biro oil bath type transmission with double reduction steel gears ensures quiet, trouble-free operation for many years. The bowl assembly and feed tray are easily removed without tools, so cleanup is a snap. Quiet and easy operation, durability, and low maintenance all help make the Biro 6642 hold its value for many years.

SPECIFICATIONS
6642 GRINDER (CHOPPER, MINCER).



CONSTRUCTION
STAINLESS STEEL FEED PAN AND POLISHED STAINLESS STEEL CASE, CAST IRON HOT TIN DIPPED BOWL, RING AND AUGER, SIZE 32.

MOTORS

HP KW TYPE VOLTS AMPS CYCLE PH STATUS
2 1.5 ODP 208-220/440 6.4-6/3.6 60 3 STD
2 1.5 ODP 115/208-230

28/15-14

 60 1 STD
2 1.5 ODP 104/208 31/15.5 60 1 NC
2 1.5 ODP 208/416 6.4/3.2 50 3 NC
2 1.5 ODP 115/230 30/15 50 1 NC
2 1.5 ODP 220/380-415 6/3.5-3.1 50 3 NC

ODP=OPEN DRIP PROOF STD=STANDARD NC=NO CHARGE EC=EXTRA CHARGE NA=NOT AVAILABLE

SWITCH AND INTERLOCK
MAGNETIC CONTACTOR WITH WATERPROOF PUSH BUTTONS MOUNTED ON RIGHT SIDE OF MACHINE (FACTORY INSTALLED) WHEN FACING BOWL AND FEED PAN INTERLOCK. PUSH BUTTONS CAN BE OPTIONALLY MOUNTED ON LEFT SIDE OF THE STAINLESS STEEL CASE.

FEED PAN CAPACITY
APPROXIMATELY 75 LBS. (34 KG).

GRINDING CAPACITY
UP TO 41 LBS. (18.5 KG) PER MINUTE, 1/8” PLATE FIRST GRIND.

DRIVE SYSTEM
DIRECT DRIVE OIL BATH TRANSMISSION AND DOUBLE REDUCTION STEEL GEARS, TAPERED ROLLER BEARINGS.

SAFETY
MAGNETIC INTERLOCK SO MACHINE WILL NOT OPERATE WHEN FEED PAN WITH WELDED BOWL GUARD IS REMOVED.



STANDARD FEATURES
4” ALUMINUM LEGS, SPURT GUARD, STOMPER, STAINLESS STEEL WELDED BOWL GUARD ON FEED PAN, OPERATING AND SAFETY MANUAL.

OPTIONS (EC)
SIZE 32/42 KNIFE AND PLATE (SPECIFY PLATE HOLE SIZE REQUIRED), POWER CORD LESS PLUG, LONGER 22” (55.5 CM) ALUMINUM LEGS, SOLID STOMPER.

CERTIFICATION
U.L., N.S.F., U.S.D.A., C.S.A. ON 115 VOLT 1 PHASE, 208/230 3 PHASE.

WEIGHT
1 PHASE UNCRATED: 243 LBS. (110 KG) APPROXIMATE.
1 PHASE CRATED: 278 LBS. (126 KG) APPROXIMATE.
3 PHASE UNCRATED: 222 LBS. (101 KG) APPROXIMATE.
3 PHASE CRATED: 270 LBS. (122 KG) APPROXIMATE.

DIMENSIONS CRATED
L = 25” (635 MM), W = 45” (1143 MM), H = 30” (762 MM).

Item Number: LIT 6642-179
